Tehnička specifikacija

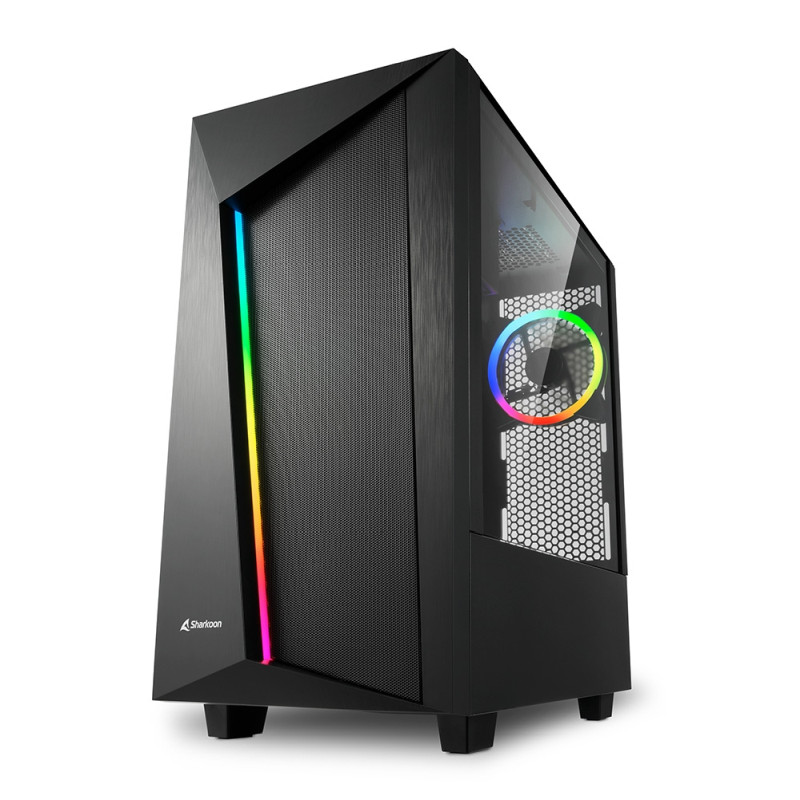

- The REV100 blends the innovative configuration of our REV case series into a compact design. Due to its space-saving dimensions, it fits easily into any setup and impresses with a simple but elegant look. Despite the smaller casing, the unmistakable features of the REV series are still to be seen, as also here, the mainboard is rotated 90 degrees and installed vertically. The tempered glass side panel is on the right side of the case, making the REV100 the ideal complement for smaller desks which are near or against walls on the left side.

Simple Elegance

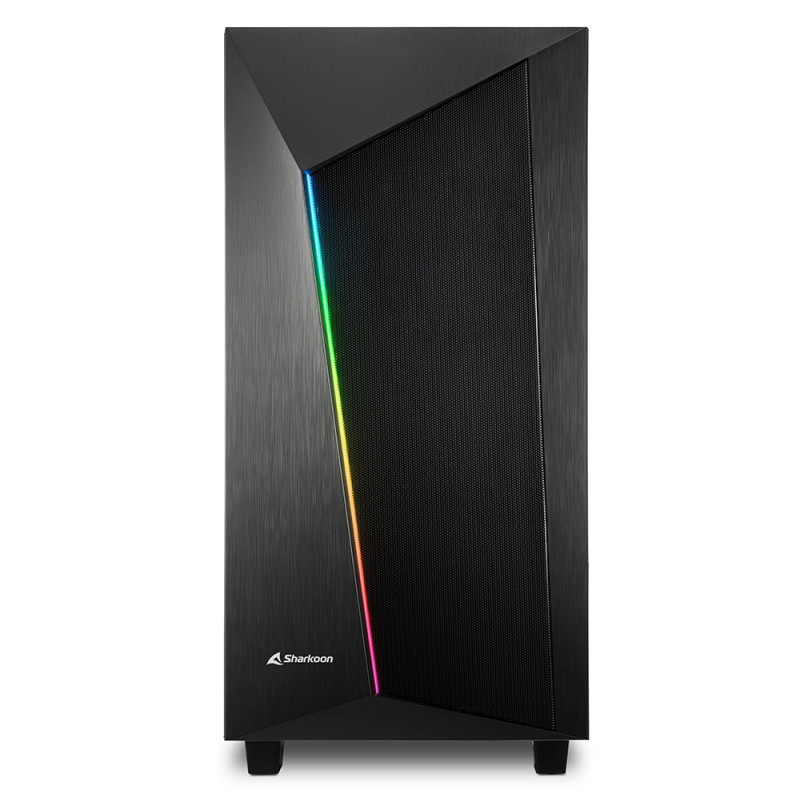

- In keeping with its compact dimensions, the look of the REV100 has been kept intentionally minimalist. The front panel has a design consisting of geometrical angles and lines and looks especially chic with a surface resembling that of brushed metal. The design frames a mesh grille which is embedded in the panel and illuminated from one side by an RGB strip. This provides the front of the case with a subtle play of colors. As an additional highlight, an addressable RGB LED fan is pre-installed on the rear panel. The pre-installed RGB controller allows the RGB fan and strip and, if desired, other optional LED components to be illuminated in 16.8 million colors. The RGB fan of the REV100 is compatible with Asus Aura Sync, MSI Mystic Light Sync, Gigabyte Fusion and ASRock Polychrome SYNC. For mainboards without the appropriate RGB connection with a 5V-D-G or 5V-D-Coded-G pinout, the fan, strip and additional components can be illuminated in 14 lighting modes using the RGB controller and a dedicated button on the top of the case.

Innovative Design Concept

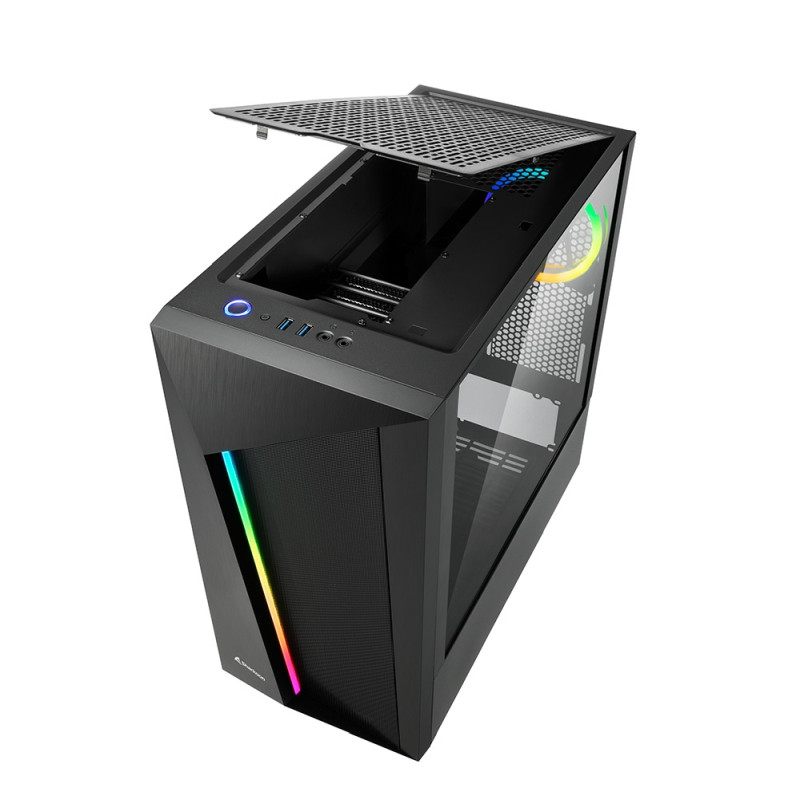

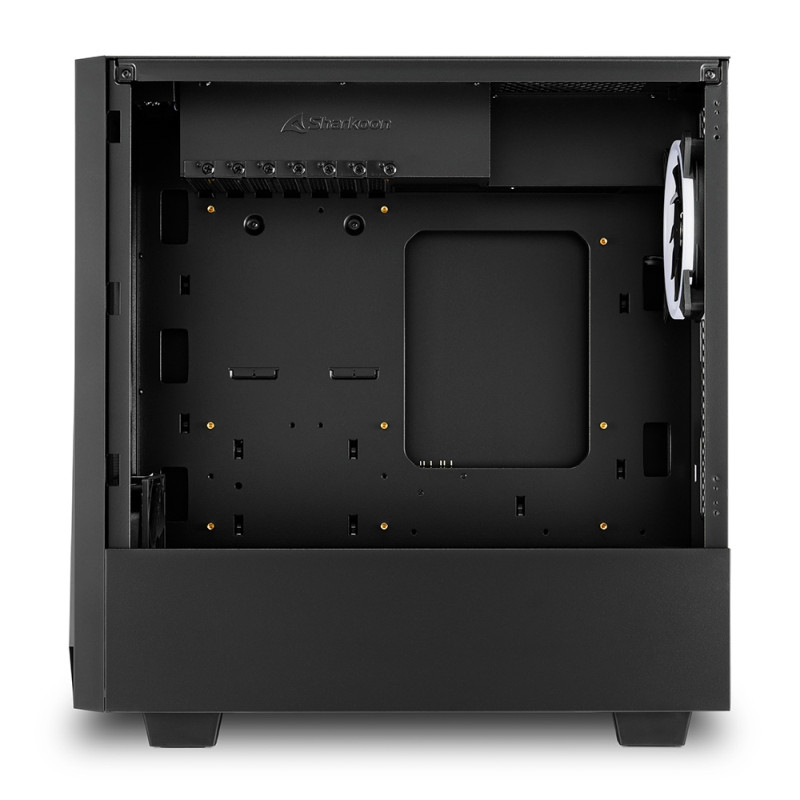

- Like the other cases from the REV series, the REV100 is characterized by its novel configuration. The mainboard is installed vertically, rotated 90 degrees, providing a look which is far away from established standards. Cables can be stored neatly in the spacious compartment under the top panel and simply led out of the case via the cable pass-through on the rear panel.

Gaming Desk REVolution

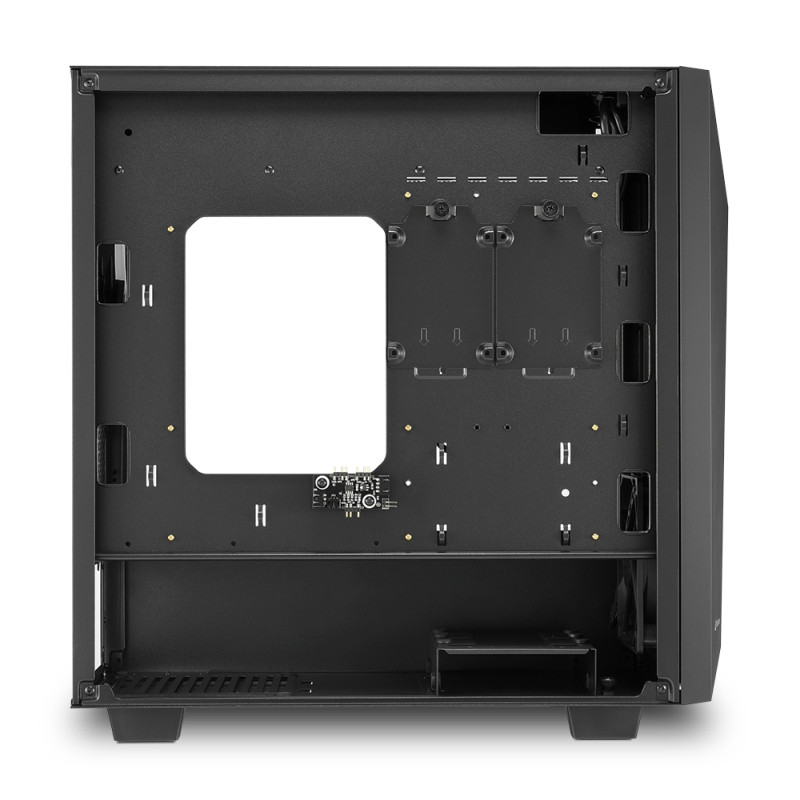

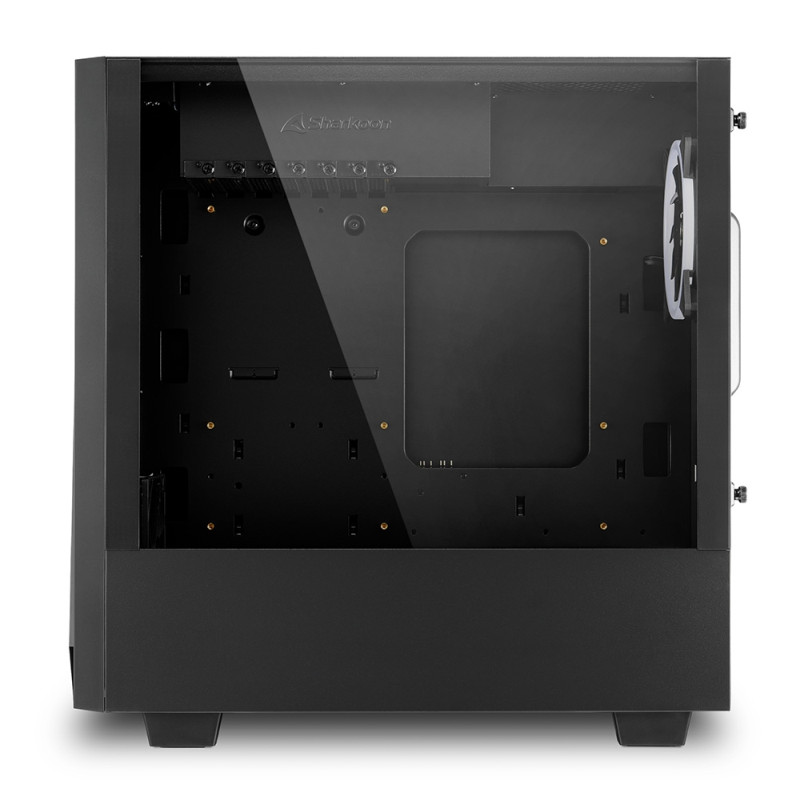

- The REV100 is typically REV, being especially suitable for placing on the left side of the desk. Instead of viewing into the case from the left side, the tempered glass side panel is now positioned on the right of the case. Since the REV100 dispenses with a power supply tunnel, the tempered glass does not cover the entire side of the case, but is supplemented underneath by a simple black panel, behind which cables and other visually unimpressive components can remain hidden.

Especially Good Airflow

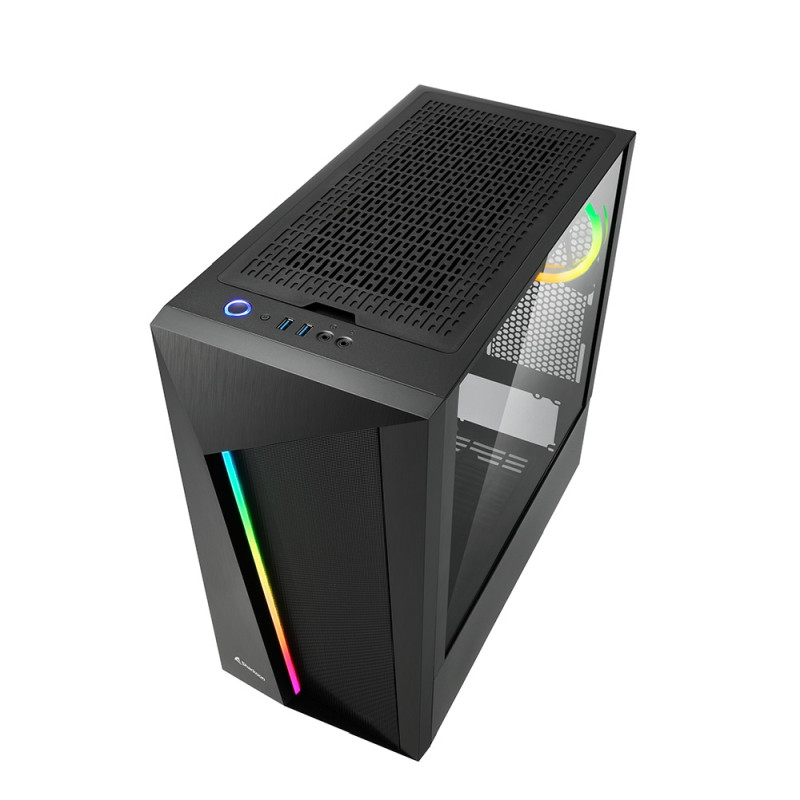

- For its size, the REV100 is extremely breathable. The mesh grille in the front, behind which a 120 mm fan is already pre-installed, allows enough air to flow through the case. A detachable dust filter behind the front panel prevents unwanted dirt from entering the case. The detachable top cover is also perforated, further supporting the airflow.

Compact Case Configuration
- Thanks to its compact dimensions, the REV100 can be easily integrated into any setup. Whether on or under the desk - the space-saving ATX case will cut a fine figure anywhere. A power supply tunnel has been dispensed with in the REV100 to maximize the interior space and to allow more flexibility when installing components and cables. This means that graphics cards with a maximum length of 31.5 cm and up to two 3.5'' hard drives or three SSDs can be installed inside compact case.

Specifications
General
- Form Factor: ATX
- Expansion Slots: 7
- Interior Painting: Yes
- Cable Management System: Yes
- Side Panel: Tempered Glass

Weight & Dimensions
- Weight: 5.8 kg
- Dimensions (L x W x H): 45.2 x 21.5 x 44.4 cm

RGB Compatibility
- Type: Addressable
- Ports: 4
- Manual Control: 14 Modes
- Mainboard Compatibility: MSI Mystic Light Sync, ASUS Aura Sync, Gigabyte RGB Fusion Ready, ASRock Polychrome Sync
- RGB pinout: 5V-D-G & 5V-D-coded-G

Max. Drive Bays
- 3.5": 3
- 2.5": 2

I/O
- USB 3.0 (Top): 2
- Audio (Top): Yes

Fan Configuration
- Front Panel: 1x 120 mm fan (pre-Installed) or 2x 120 mm fan (optional) or 2x 140 mm fan (optional)

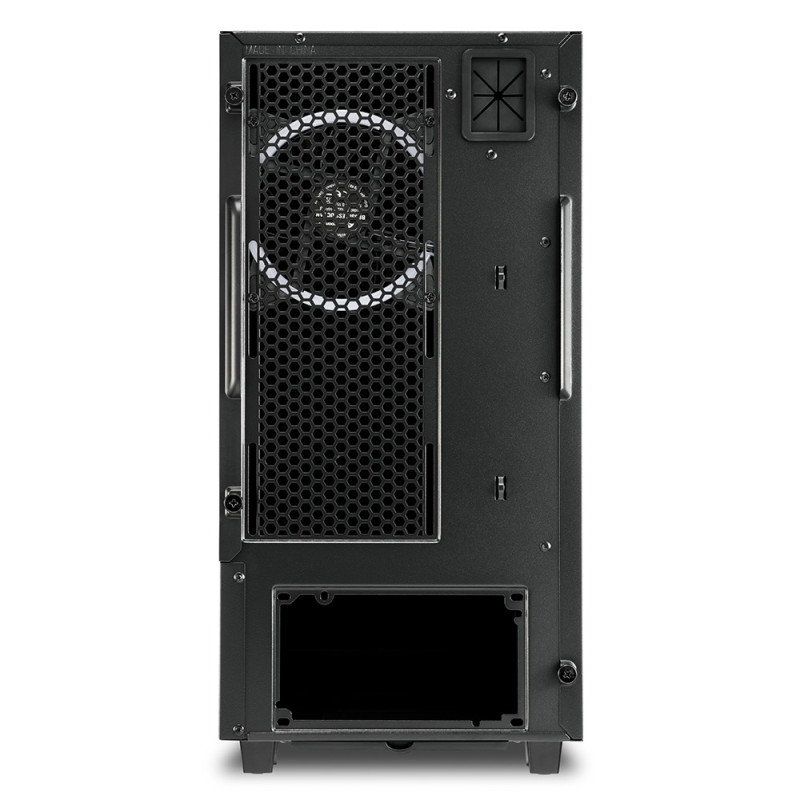

- Rear Panel: 1x 120 mm Addressable RGB Fan (Pre-Installed) or 1x 120 mm fan or Radiator (Optional)

Compatibility
- Mainboard: Mini-ITX, Micro-ATX, ATX
- Max. Length Graphics Cards: 31.5 cm*
- Max. Height CPU Cooler: 16.7 cm
- Max. Length PSU: 20 cm
- Max. Height Radiator incl. Fan (Rear): 5.5 cm

Optional Accessories
- SHARK Blades RGB
- Package Contents
- REV100
- Accessory Set
- Manual

Note
*28.8 cm if 2x 3.5" HDDs installed
