Tehnička specifikacija

- WOOX R7305 Smart Zigbee Smoke Sensor provides optimal peace of mind and confidence that your home or office is protected for smoke, fire or other forms of heat.

- The WOOX smoke alarm can alert with 85dB sound and red light when smoke is detected, in the meantime it sends real-time notifications via the free WOOX Home app to your smartphone or tablet.

Automation
- R7305 can also works fluently with all other WOOX products by creating scenarios, automations in the WOOX Home app.

Easy to create a smoke alarm network
- A Smoke Alarm Unit is almost an obligated standard for all homes in most European countries and since most homes have multiple floors and rooms the WOOX R7305 Smoke Alarm can be used with multiple units in multiple floors and rooms and connect to eachother, you can build up your smoke alarm network at home how you want it and set an alarm function that triggers all units at the same time, it is all possible via the free WOOX Home application for your iOS, Android smartphone or tablet.

Zigbee control
- R7305 comes equiped with a Zigbee 3.0 chipset, in order to connect this R7305 smoke sensor alarm you need a Zigbee gateway as primary connection point, gateway. A WOOX R7070 gateway fulfils this need perfectly and can connect over 50 different Zigbee devices.

Mounting

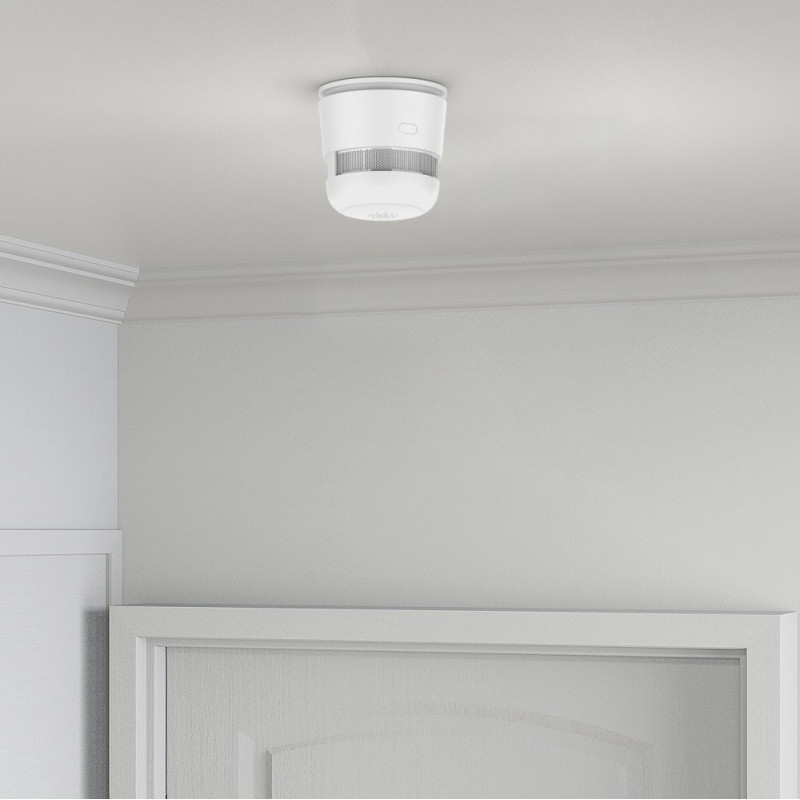

- R7305 can be mounted on a ceiling or wall using the backplate and screws or you can stick it on using the 3M tape, all accessories are included in the package.

Features
- Smart Zigbee smoke sensor alarm – alarms you for smoke and abnormal increase of temperature
- Compatible with all other WOOX devices
- Works with voice control services of Google Assistant
- Zigbee 3.0 device, gateway not included in package
- NEN 14604 certified
- Free WOOX Home application to control

Specifications
- Product Size: 52mm * 52mm
- Net Weight: 69 Gram
- Input Voltage: Dc 3v
- Alarm Concentration: 0.100--0.160db/m
- Average Quiescent Current: <23ua
- Alarm Current: <60ma
- Connection Range: 10~30 Meters Indoor And More Than 70 Meters In Open Air
- Alarm Sound Volume: 85db (3 Meter Away)
- Zigbee Module Model: Tuya, Tyzs3
- Battery Module: Cr123a Lithium Manganese Battery
- Battery Capacity: 3v 1600mah
- Battery Lifetime: 3 Year (Trigger Frequency: 5 Times A Day)
- Wireless Net Standard: Ieee 802.15.4/zigbee
- Wireless Frequency: 2.405-2.480ghz
- Working Temperature: -10°c ~+55°c
- Working Humidity: 0 ~95%rh (Non-condensing)
- Alarm Notification: Open \ Close
- Low Battery Alert: Support
- Battery Level: Support
- Device Fault: Support
- Linkage Alarm: Support
- History Record: Support
- Voice Solution Configuration: Google Assistant
- Automation Function As Condition: Smoke Detection Status, Fault Alarm
- Automation Function As Result: Linked Alarm
- Installation: Ceiling-mounted (Screwing Or 3m Gum)
- Material: Abs
- Ingress Protection (Ip): Ip20
- Flame Fetardance: Ul94-v0
- Housing: White
- Led Light Color: Red
- Approved Certification: Ce Red, En 14604:2005+ac:2008,rohs, Reach
