Tehnička specifikacija

Features
- All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps
- Supports Auto-MDI/MDIX function
- Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode
- Store and forward Switching scheme

Specifications
- Standards and Protocols:
• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
- Interface:
• 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
- Fan Quantity: Fanless
- Physical Security Lock: No
- Power Supply: 100-240VAC, 50/60Hz
- Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)
- Mounting: Rack Mountable
- Max Power Consumption: 13.62W
- Max Heat Dissipation: 46.44BTU/h

PERFORMANCE
- Switching Capacity: 48Gbps
- Packet Forwarding Rate: 35.7Mpps
- MAC Address Table: 8K
- Jumbo Frame: 10KB
- QoS: 802.1p/DSCP QoS*
*Only for V11 and later version
- Green Technology: Yes
- Transfer Method: Store-and-Forward

OTHERS
- Certification: FCC, CE, RoHS
- Package Contents:

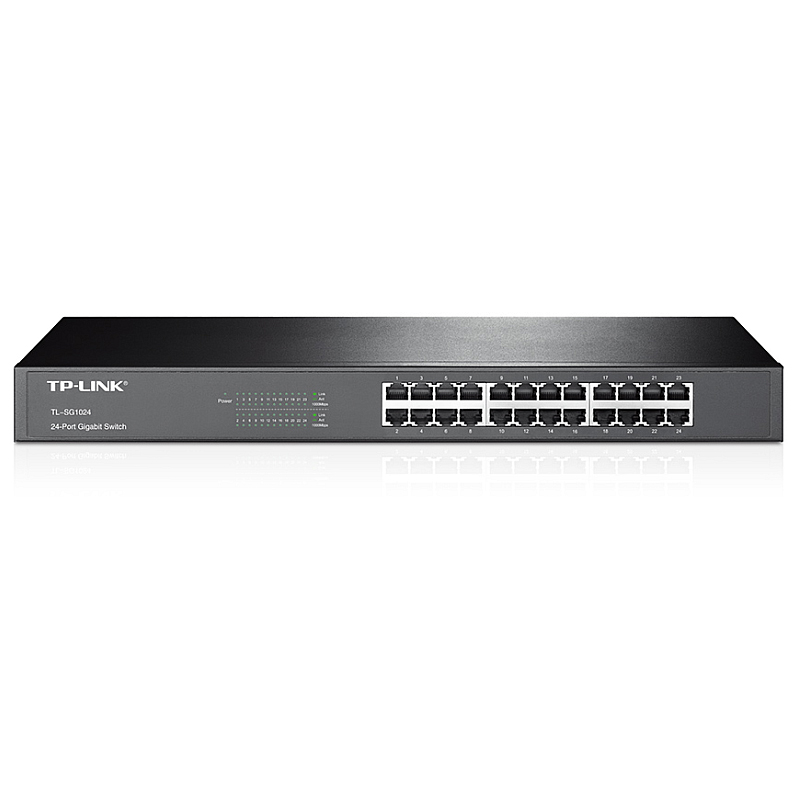

• 24-Port Gigabit Rackmount Switch
• Power Cord
• Installation Guide
• Rackmount Kits
• Rubber Feet
- Environment:
• Operating Temperature: 0C~40C (32F~104F)
• Storage Temperature: -40C~70C (-40F~158F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
